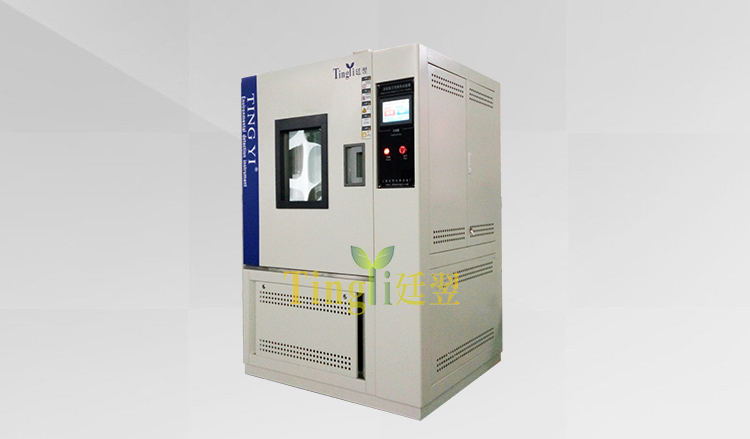

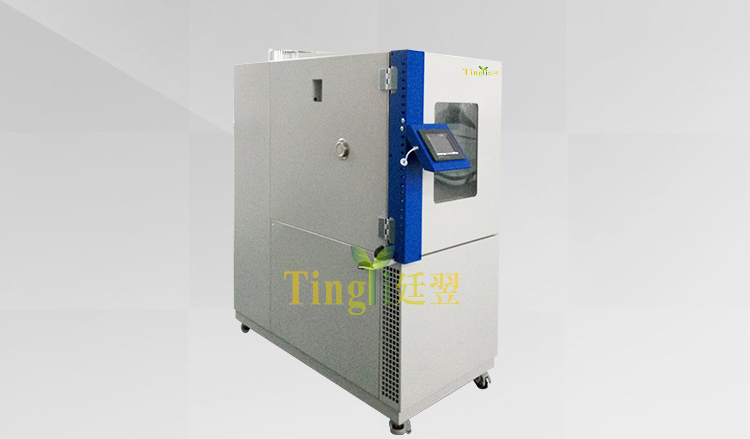

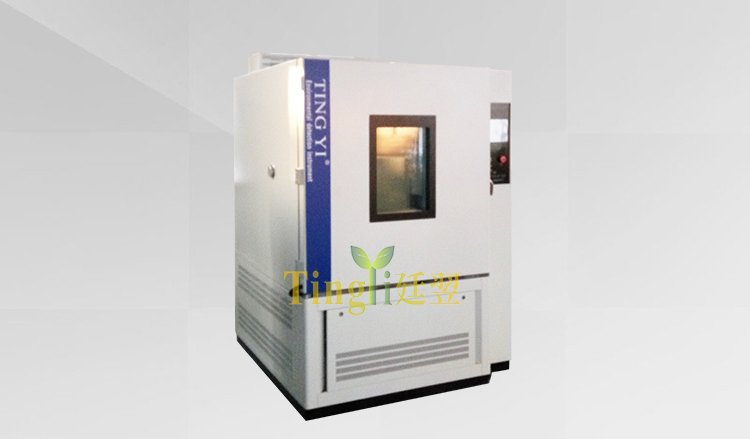

Highandlowtemperaturealternatingdampheattestbox高低温交变湿热试验箱
Experiments use equipment: electric, electronic, instrumentation, automotive electronics, electronic components materials products, under the condition of high and low temperature environment storage and use of adaptability, and is suitable for schools, factories, military industry, scientific research units to detect a variety of electronic vitality pieces in high and low temperature or in hot and humid environment of various performance indicators.
Main technical parameters of the equipment specification material：
model（L) | Studio sizeD*W*H(mm) | Carton sizeD*W*H(mm) | Total power（KW） | Temperature and humidity |
TY/GDJS-50L | 350*350*400 | 790*800*1320 | 3.5～5.5 | RT～+150℃ -20℃～+150℃ -40℃～+150℃ -60℃～+150℃ -70℃～+150℃ 20％～98％R.H |
TY/GDJS-100L | 400*500*500 | 970*850*1370 | ||
TY/GDJS-150L | 500*500*600 | 970*950*1470 |
6～7.5 | |
TY/GDJS-225L | 500*600*750 | 1090*1130*1890 | ||
TY/GDJS-400L | 600*800*850 | 1170*1300*1960 |
7～10 | |
TY/GDJS-500L | 700*800*900 | 1182*1250*1880 | ||
TY/GDJS-800L | 800*1000*1000 | 1250*1500*2100 |
8～11.5 | |
TY/GDJS-1000L | 1000*1000*1000 | 1450*1500*2100 | ||
Fluctuation degree | ≤±0.5℃ | |||
Uniformity | ≤±2℃ | |||
Humidity uniformity | ≤±3％R.H(＞75％）±5％R.H（≤75％） | |||
deviation | ≤﹢3-4％R.H | |||
heating rate（min） | 1℃～5℃（-20℃～+150℃≈60min；-40℃～+150℃≈60min；-70℃～+150℃≈60min） | |||
cooling rate（min） | 0.7～1.5℃（+20℃～—20℃≈40min；+20℃～—40℃≈60min；+20℃～—70℃≈60min） | |||
accuracy | 0.1 | |||
remarks | ||||
Other temperature and humidity and size can be customized according to requirements, equipment in kind prevail, the experimental data were at ambient temperature 25 DEG C studio no-load conditions measured | ||||
Construction | ||||
Internal material | Thick 304SUS mirror stainless steel plate / fog surface stainless steel plate | |||
External material | 1.5mm thick cold rolled steel plate / stainless steel wire drawing, electrostatic spraying, strong, beautiful, durable, durable, appearance of a variety of colors optional | |||
material | Ultra fine glass fiber cotton / polyurethane foam material, thickness 100mm, high and low temperature insulation performance is excellent | |||
heater | Stainless steel, nickel chromium alloy fin type heater, built-in heating element installed on the stainless steel cavity dissection is extremely safe | |||
sealing material | Silicone rubber, reliable sealing, good aging resistance | |||
Test threading hole | The 50mm or 100mm thread hole of a high temperature material, a cover, a silica gel plug | |||
Observation window | Large rectangular multi-layer hollow electric heating glass observation window, with LED lights can be clearly observed inside | |||
Casters | Adjustable Foma wheel, mobile and fixed at random | |||
Shelves | The standard 2 movable rack, adjustable height | |||
Box bottom bearing | The bottom of the box laying well type channel steel framework, floor welding as a whole | |||
Air duct system | ||||
Wind circulation | Multi blade centrifugal fan so long axis motor and so to ensure the rational circulation of built-in type air channel and forced internal circulation ventilation, adjustable guide wind board design to improve air flow, heating and cooling capacity, a significant improvement in the balance adjustment of temperature and humidity to ensure uniform temperature test box | |||
Humidification / desiccant and supply water system | ||||
humidification | External heating and wetting method of stainless steel sheathed electric heater | |||
dehumidification | The light pipe surface mechanical refrigeration dehumidification, evaporation pressure regulator, to avoid frost | |||
Supply / drainage | Built in water tank, automatic water inlet and drainage | |||
Yi Ting control system | ||||
meter | South Korea is one of the three yuan /TEMI series inch 3.5 inch /4.3 /5.7 inch and 7 inch / 9 inch color touch screen thin, program or fixed value control mode of the two free conversion, connected to the computer, observed the curve, USB data derived, in both Chinese and English switching. High resolution, more accurate and better use | |||
sensor | -50 ~ -70 to +150 DEG C for Finland Weisala / South Korea three yuan; ~ -20 at room temperature -40 DEG to +150 DEG C for PT100 platinum resistance | |||
Electrical components | ||||
Electrical | LG/ / CHINT / Schneider / West Germany and other well-known brands, stable performance incomparable, long durability | |||
refrigeration system | ||||
compressor | Non-standard large studio imported Bitzer Germany / Italy Fujitsu ho semi closed compressor unit; standard box with France 100 years "Taikang" full closed refrigeration compressor unit, each unit were after the European Computer Networking itemized monitoring and security code, through the Internet search | |||
enclosure | Solenoid valve: Japan Heron works; filters: (USA) Emerson; voltage controlled / thermal expansion valve: (Denmark) / (Italy) Castel properly | |||
Refrigerant | R404A, R23 fast and efficient environmental protection | |||
Cooling mode | Air / water cooling | |||
other | ||||
Power Supply | AC220V ~ AC380V + 10%50Hz + 0.5Hz (for optional) | |||
Safety protection system | Over temperature alarm, leakage protection, under phase lack phase protection, over current protection, fast fuse device, a compressor high and low voltage protection, compressor overheat protection, compressor over current protection, line fuses and sheath full type terminal, water protection, to protect | |||
Meet the standard | GB/T5170.2-2008Temperature test equipment GB/T5170.5-2008Damp heat test equipment GB/2423.1-2008（IEC68-2-1cold）Test A: low temperature test GB/2423.2-2008（IEC68-2-2Dry heat）Test B: high temperature test GB/2423.3-2006（IEC68-2-3）Experiment Ca: constant damp heat test GB/2423.4-2006（IEC68-2-4）Test Db: alternating damp heat test GBT10592-1989Technical conditions of high and low temperature test chamber SJT31391-1994Requirements of readiness and methods of inspection and assessment for test cases GJB150.3-1986High temperature test GJB150.4-1986 low temperature test | |||
(model appearance of technical information are subject to change without notice, Ting Yi has the power of final interpretation)
Yi Ting test box Configuration strong cost high | |||
 |  |  | |
 |  |  | |
1. Fast and efficient energy saving of pure imported compressor units | 1. Can choose (Bitzer Germany / Italy Fujitsu HO) semi hermetic refrigeration compressor unit, century French "Taikang" full closed refrigeration compressor unit, each unit were after the European Computer Networking itemized monitoring and security code, through the Internet search. 2. For different box temperature requirements, the selection of different units, Ting Yi instrument to ensure the experimental box of cooling rate and can reach the minimum required temperature, the temperature is lower than - 40 box using bipolar cascade refrigeration unit and cascade refrigeration system, including a high pressure refrigeration cycle and a low pressure refrigeration cycle. The 3 connector for evaporative condenser, evaporator condenser will function as evaporator low-pressure circulation as high condenser cycle with temperature not exceeding -40 temperature as long as the unit can be used. 4 constant temperature and cooling by battery valve to control the cooling output size, than the traditional thermal balance method saves about 30% of energy, greatly reducing the user cost. After baking machine test, multiple data comparison and improvement. | ||
 |  |  | |
 |  |  | |
Two. Large screen high performance controller three yuan /TEMI series Powerful functions, easy to use, interface pretty outrageous | Using the computer technology, the advanced PID control method to measure and control the temperature and humidity of the environment, and can be used with constant temperature and humidity equipment. Alternating high and low temperature test box, suitable for more suitable test box with constant temperature and humidity, dust and rain xenon lamp UV ozone salt fog test box. Can display and control interface is clear and intuitive touch, select menu, easy to use, stable and reliable performance. This program control is flexible, cost-effective. The input channel and output channels can be arbitrarily extended | ||
1 touch screen 3.5 inch /4.3 inch /5.7 inch and 7 inch /9 inch Two 2 control methods: program / set value, the program can edit 120 sets of programs, the maximum can be compiled for 100 sections, the group of all cycle, the segment cycle; 3 sensor type: two PT100 input (optional electronic sensor input 4 products show clear intuitive three-dimensional sense of strong, programmable control system is flexible and convenient operation, stable performance, more efficient work; flexible installation method, 5 can be embedded or embedded installation 6 alarm signal: 16 DI external obstacle alarm; 7 temperature measurement range: --200.00 C -90.00 C, (optional --300.00 C -90.00 C) error + 0.2 c; 8 humidity measurement range: 1.0%--100%RH, the error is + 1%RH; 9 communication interface: (RS232/RS485, communication the longest distance 1.2km[optical fiber up to 30km]); 10 interface language type: Chinese / english; 11 Chinese character input function, edit input manufacturers information, fault name, test name, etc., display intuitive, clear; 12 curves: real time temperature, humidity PV, SP curve; 13 with network function IP address can be set; can bring the printer (USB function optional); remote control instrument; | |||
|
|
| |
Three. New, CommScope granular activated carbon filter, water filter and even drinkable Perfect solution part of the use of pure distilled water, and lead to poor water quality due to the problem of poor water | |||
 |  |  | |
Four. / Schneider / CHINT and other well-known Delixi electrical components Performance is stable and unparalleled, long and durable to prevent the problem of circuit | |||
 |  |  | |
ive. Excellent effect and refrigeration accessories The Danfoss, evaporating pressure regulating valve to make the evaporation pressure of the system is kept constant, the surface of the evaporator temperature could be controlled by regulators in the suction pipe on the throttle, so as to avoid long time of low temperature and high humidity or temperature and humidity test evaporator icing test abnormal phenomenon caused by the. The Japanese Heron works two solenoid valves, valve coil battery shell protection class up to IP67. The Emerson Shuangliu thermal expansion valve closure, the expansion valve through the end of the evaporator superheat change to adjust the flow, prevent the emergence of evaporator using area and the compressor cylinder knocking phenomenon. ALCO two pass filter. | |||
Six. Safety and rest assured that a variety of protection systems do not have to worry about hidden dangers With over temperature alarm, leakage protection, under phase lack phase protection, over current protection, fast fuse device, a compressor high and low voltage protection, compressor overheat protection, compressor over current protection, line fuse and the sheath type terminal and grounding protection. | |||
○ AC220/380V three-phase four wire + protection ground wire; ○ Voltage fluctuation range: AC220/380V + 10% ○ Frequency range: 50Hz + 0.5 Hz ○ Ground resistance is less than 4; TN-S mode power supply or TT mode power supply ○ The ground wire is used alone and not shared with other equipment. |
○ The use of ambient temperature 5 to 35 DEG C, the best use temperature: 15 to 25 DEG C, relative humidity: atmospheric pressure: 86-106Kpa = 85%RH |
○ Ground level, well ventilated, non flammable, explosive, corrosive gas and dust. ○ There is no strong airflow around, when the ambient air is forced to flow, the air flow should not be blown directly into the box. ○ No electromagnetic field near, without direct sunlight, other thermal radiation source ○Proper maintenance space is left around the equipment. ○ Ground bearing requirements of more than 600kg/ square meters (the upstairs venue) ○ Venue: drainage test box near the best can have faucet and floor drain |
Maintenance considerations and methods:
1 cooling units of the radiator (condenser) should be regular maintenance, keep clean. Dust sticky condenser will make the high-pressure compressor switch jump off and produce false alarms, the condenser should be monthly maintenance, condenser cooling network on chip attachment of the dust suction or boot using hard the hair brush or with high pressure gas mouth blown clean of dust with a vacuum cleaner.
The 2 door or take the test from the furnace, not let the goods on the door to prevent the contact edge glue, glue edge damage and shorten the life.
3 around the body and at the bottom of the ground should be kept clean, so as to avoid a large number of dust suction unit to produce an accident and reduce performance.
Please notice the factory or direct handling of 4. Refrigeration system is the core of this machine, please a year inspection of all brass of any leakage of snow, the horn joint, welding mouth, such as the leakage of grease.
5. Distribution disc large current contact, power distribution room of every year at least clean maintenance more than once, the loose contact will make the equipment in hazardous work state, light burned out component, fire, alarm, personal injury is very dangerous. When cleaning cleaning using a vacuum cleaner will indoor dust suction can be among.
6. The humidifier and water disc regular cleaning, so as not to produce scale, effect of vapour emission, a general finish cleaning a test, the scale has been excluded in a timely manner favorable humidifying tube life and ensure smooth flow cleaning when using copper brush wash rinse clean.
. dry and wet ball of yarn sets of frequently check, after test cloth surface is not clean or harden, or in finishing temperature control, continue to do temperature and humidity control of the ball must be replaced yarn test set, or in more than 85 DEG C high temperature control, go on to the temperature and humidity control. The examination such as non absorbent, please replace the, related to humidity testing accuracy and testing yarn set general March a replacement, replacement application cleaning cloth wiping microthermometry, replacement of new test yarn set should first wash the tank clean
8 the examination and adjustment of the water level of the wet bulb
The water level of the water drum can not be too high, too high to cause the water to overflow the water drum or too low to cause the wet ball to test the yarn sleeve, which affects the accuracy of the wet ball. The water level is about six minutes. The adjustment of the water drum level can adjust the height of the water box [adjusting both sides of the screw]
9. The distribution box two over temperature protection device setting value, please do not just debugging, factory tuned, the protective switch is protection of heating pipe and a humidification tube air burning and water shortage alarm. Set point = temperature set point + 20 DEG to 30 DEG C, temperature test box rose to super thermostat set point, heater power supply is stopped, over heat] over temperature warning lights but the fan is running, if long time operation and supervision, running before do not have to check over temperature protection device is properly set up.
10 inspection and maintenance of waterways
Water pipe is easy to block leakage device, please be sure to check there is no leakage plugging water phenomenon, please promptly eliminate or inform us if there is. In the humidifier water storage monthly replacement to ensure clean water, the water flow is smooth.
11 condenser dust removal
The condenser should be maintained at regular intervals, using the vacuum cleaner to remove the dust from the condenser heat sink or the use of high pressure air.
12 when the test product time to get the product, must be in the shutdown state and the staff must wear a good dry, electricity, temperature resistant gloves to take place the product.
External cleaning and maintenance machine in 13 cases should be removed before operation.
The power distribution room is cleaned at least once or more every year, and can be used for cleaning the indoor dust. The exterior of the box must be cleaned more than once per year, which can be cleaned with soap and water.
