Xenon lamp weather resistance test box氙灯耐气候试验箱、氙灯老化箱
Use equipment: the simulation and reproduction in different environments are destructive wave of xenon arc lamp in the full spectrum of sunlight, you can provide the corresponding simulation environment and accelerated test for scientific research, product development and quality control. Can be used for the selection of new materials, to improve the existing materials or to assess the changes in the composition of materials, such as changes in the durability of the test. The equipment can well simulate the changes in different environmental conditions within the material produced by exposure to the sun.
model（L) | Studio sizeD*W*H (mm) | Carton sizeD*W*H(mm) | Temperature humidity |
TY/XD-150 | 500*500*600 | 1100*880*1600 |
temperature： RT+10℃～80 Uniformity：≤±2℃ humidity： 40%～98% R.：Uniformity﹢2％～-3％R.H |
TY/XD-225 | 500*600*750 | 1060*1130*1700 | |
TY/XD-500 | 700*800*900 | 1230*1300*1850 | |
TY/XD-800 | 800*1000*1000 | 1435*1400*1950 | |
TY/XD-1000 | 1000*1000*1000 | 1600*1500*1950 | |
| Note: other temperature and humidity of the size of the material can be customized according to requirements, equipment in kind prevail, the experimental data are in 25 DEG C no-load conditions measured | |||
Construction | |||
Internal material | High quality and high 304SUS stainless steel mirror fog panel | ||
External material | High quality cold-rolled steel / stainless steel plate electrostatic spraying, strong, beautiful, durable, durable, color optional | ||
rotary speed | 2r/min（Adjustable speed） | ||
material | Ultra fine glass fiber cotton / polyurethane foam material, thickness 100mm, high and low temperature insulation performance is excellent | ||
Casters | Adjustable wheel, move and fix at will | ||
heater | Stainless steel, nickel chromium alloy fin type, embedded type heating element is mounted on the stainless steel cavity dissection is extremely safe | ||
Spray circulation system | |||
Nozzle | Studio on both sides of a number of | ||
pressure | 0.12-0.15Mpa | ||
Spray cycle | 12min-102minAdjustable | ||
Spray time setting | 0～9999H59min Interval (off) | ||
Shanghai Yi Ting instrument xenon lamp illumination system | |||
Illumination time setting | 0～9999H59min Interval (off) | ||
Irradiance wavelength | 290nm～800nm（290nm～800nm 340nm550W/㎡） | ||
The xenon lamp radiation intensity | A lamp set value of adjustable maximum irradiance range 550W/ square meters (according to the required 1000W/ square meters or maximum) | ||
Xenon lamp life | 1.8KW/≈2000H（Domestic and imported lamps） | ||
Sensor acquisition mode | Blackboard thermometer, PT100 sensor | ||
Humidification / desiccant and supply water system | |||
humidification | External heating and wetting method of stainless steel sheathed electric heater | ||
dehumidification | The light pipe surface mechanical refrigeration dehumidification, evaporation pressure regulator, to avoid frost | ||
Supply / drainage | Built in water tank, automatic water inlet and drainage | ||
Yi Ting control system | |||

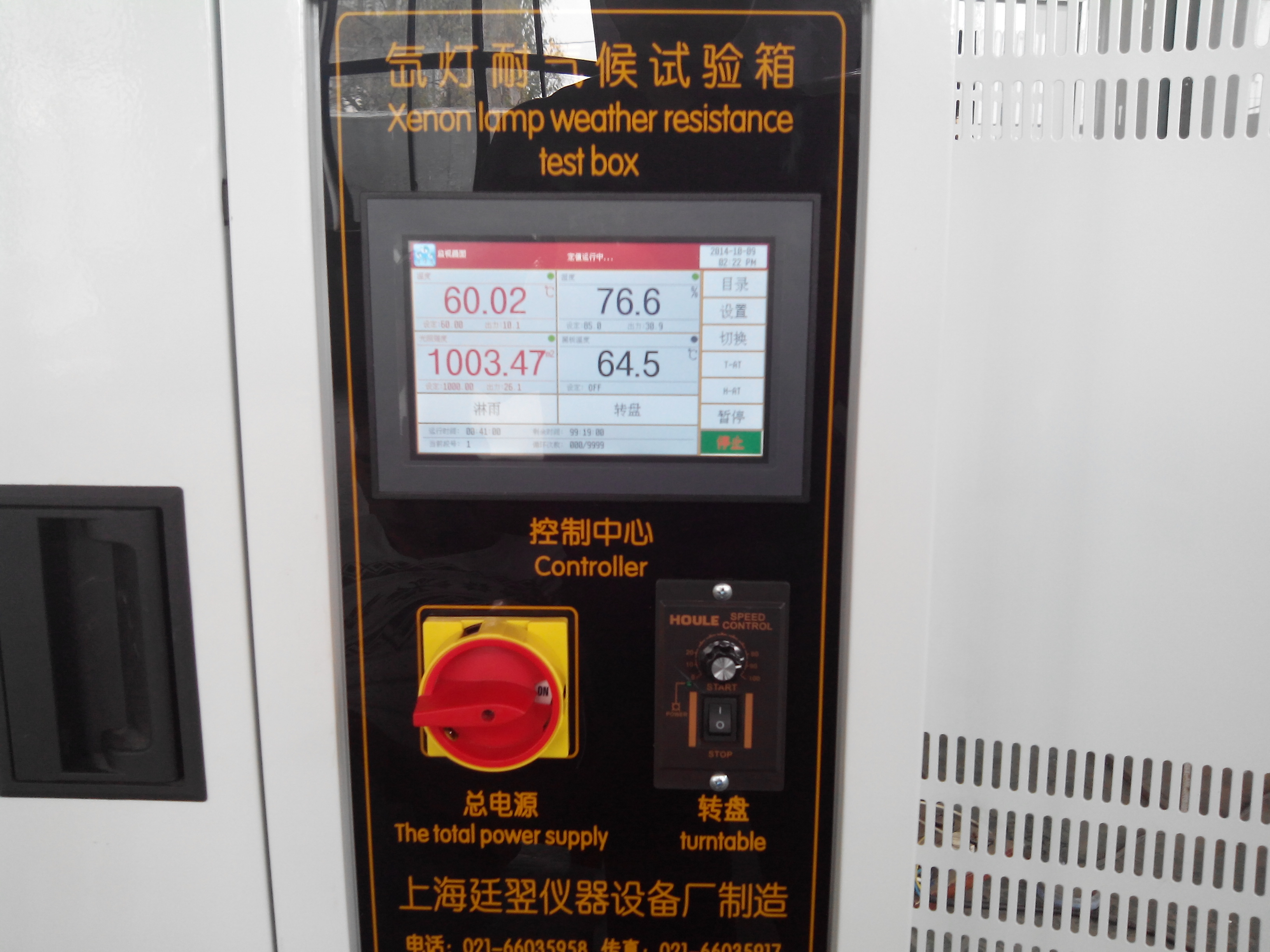

meter | Button type: select the original imported microcomputer PID temperature controller for temperature control. Touch screen: 7 inch large screen color touch thin screen program or set the value of the two kinds of control mode, light condensing spraying free conversion, connected to the computer, observed the curve, USB data derived, in both Chinese and English switching. High resolution, more accurate and better use | ||
Electrical | |||
Electrical | LG/ / CHINT / Schneider / West Germany and other well-known brands, stable performance incomparable, long durability | ||
refrigeration system | |||
compressor | Standard box with France 100 years "Taikang" full closed refrigeration compressor unit, each unit were after the European Computer Networking itemized monitoring and security code, through the Internet search | ||
Attachment | Solenoid valve: (Japan) Heron works; filters: (United States) AI high / Emerson; voltage controlled / thermal expansion valve: (Denmark) / (Italy) Castel. Quality custom air cooling coil condenser, fin type multi evaporator | ||
Refrigerant | R404A、R23 | ||
Cooling mode | Air / water cooling | ||
other | |||
Power Supply | AC220V～AC380V ±10% 50Hz ±0.5 Hz | ||
Safety protection system | Over temperature alarm, leakage protection, under phase lack phase protection, over current protection, fast fuse device, a compressor high and low voltage protection, compressor overheat protection, compressor over current protection, line fuses and sheath full type terminal, water protection, to protect | ||
Meet the standard | GB2424.14-1995 solar radiation test guide. ISO 4892-2:2006 plastic methods of exposure to laboratory light sources - Part second: Xenon arc lamp ISO 11341-2004 paints and varnishes. Simulation and Simulation of climate radiation exposure. Exposure to a xenon arc lamp ASTM G155-05a exposure of non metallic materials for Operating Xenon arc light apparatus for standard The implementation of standard ASTM D6695-03b xenon arc exposures of paint and related coatings standard GB/T 22771-2008 "printing technology prints and printing inks with xenon arc lamp UV light filter evaluation" etc | ||
(model appearance of technical information are subject to change without notice, Ting Yi has the power of final interpretation)
Ting Yi xenon lamp weather resistance test box Configuration strong cost high | |||
 |  |  | |
1. Fast and efficient energy saving of pure imported compressor units | 1. Can choose (Bitzer Germany / Italy Fujitsu HO) semi hermetic refrigeration compressor unit, century French "Taikang" full closed refrigeration compressor unit, each unit were after the European Computer Networking itemized monitoring and security code, through the Internet search. 2. For different box temperature requirements, the selection of different units, Ting Yi instrument to ensure the experimental box of cooling rate and can reach the minimum required temperature, the temperature is lower than - 40 box using bipolar cascade refrigeration unit and cascade refrigeration system, including a high pressure refrigeration cycle and a low pressure refrigeration cycle. 3 connector for the evaporative condenser, the function of the evaporator condenser for the low pressure cycle of the evaporator as a high pressure cycle of the condenser, the temperature is not more than -40 of the temperature as long as the use of a single unit can be. 4 constant temperature and cooling by the battery valve to control the output size of the cold, can save about 30% of energy than the traditional hot and cold balance method, greatly reduce the cost of the user's use. After repeated testing, the data is improved. | ||
 |  |  | |
 |  |  | |
Two. Large screen high performance controller three yuan /TEMI series Powerful functions, easy to use, interface pretty outrageous | Using the computer technology, the advanced PID control method to measure and control the temperature and humidity of the environment, and can be used with constant temperature and humidity equipment. Alternating high and low temperature test box, suitable for more suitable test box with constant temperature and humidity, dust and rain xenon lamp UV ozone salt fog test box. Can display and control interface is clear and intuitive touch, select menu, easy to use, stable and reliable performance. This program control is flexible, cost-effective. The input channel and output channels can be arbitrarily extended | ||
1 touch screen 3.5 inch /4.3 inch /5.7 inch and 7 inch /9 inch Two 2 control methods: program / set value, the program can edit 120 sets of programs, the maximum can be compiled for 100 sections, the group of all cycle, the segment cycle; 3 sensor type: two PT100 input (optional electronic sensor input). 4 alarm signal: 16 DI external obstacle alarm; 5 temperature measuring range: -90.00 DEG --200.00 DEG C, + 0.2 error; 6 humidity measurement range: 1.0%--100%RH, error 1%RH; 7 communication interface (RS232/RS485, the longest distance of 1.2km[optical fiber communication up to 30km]); 8 interface language: Chinese / English; 9 have Chinese characters input function, edit the input information vendors, fault name, test name, intuitive display, clear; 10: real time curve of temperature and humidity, said PV SP curve; 11 network function with IP address can be set; with the printer (USB optional); remote control instrument; 12 visual display stereoscopic, programmable control system of flexible and convenient operation, stable performance, work more efficiently; flexible installation, can be installed plug-in or embedded; | |||
|
|
| |
Three. New, CommScope granular activated carbon filter, water filter and even drinkable Perfect solution part of the use of pure distilled water, and lead to poor water quality due to the problem of poor water | |||
 |  |  | |
Four. / Schneider / CHINT and other well-known Delixi electrical components Performance is stable and unparalleled, long and durable to prevent the problem of circuit | |||
 |  |  | |
Five. Europe and the United States refrigeration accessories excellent results The Danfoss, evaporating pressure regulating valve to make the evaporation pressure of the system is kept constant, the surface of the evaporator temperature could be controlled by regulators in the suction pipe on the throttle, so as to avoid long time of low temperature and high humidity or temperature and humidity test evaporator icing test abnormal phenomenon caused by the. The Japanese Heron works two solenoid valves, valve coil battery shell protection class up to IP67. The Emerson Shuangliu thermal expansion valve closure, the expansion valve through the end of the evaporator superheat change to adjust the flow, prevent the emergence of evaporator using area and the compressor cylinder knocking phenomenon. ALCO two pass filter. | |||
 |  |  | |
Six. With powerful long arc xenon lamp as light source, simulated sunlight by xenon lamp effect. Photovoltaic probe from the door of Beijing Normal University Simulation and strengthening of weather resistant accelerated aging test equipment to quickly get the results of the test of near atmospheric aging. The main factors that cause the aging of the materials are sunlight and moisture. Can simulate the harm caused by sunshine, rain and dew, by condensation of moisture to simulate rain and dew, material to be measured placed under certain temperature, light and moisture alternating cycle program tested, by a few days or a few weeks time can reproduce outdoor for months and even years out of harm | |||
Seven. The characteristics of the blackboard thermometer The blackboard thermometer has been used for decades to make the ASTM, JIS, DIN, ISO and other artificial climatic test methods still can continue to use. However, due to the improvement and application of various types of artificial climate box, there are a lot of development and changes in the design of the blackboard thermometer. A commonly used blackboard thermometer is made of a stainless steel flat plate with a length of about 150mm, a width of about 70 mm, and a thickness of about 1 mm. The plate for the light side with a black flat paint coating at least be able to absorb 90% of total amount of incident 2500nm. Slab temperature measurement through a is located in the center of the flat and with black exposure surface is connected firmly and blackened rod-shaped bimetallic disk sensor or measurement of resistance sensor to. The blackboard temperature sensor is used to connect the temperature sensor, the temperature of the blackboard is controlled by the temperature instrument, and the temperature is more stable and accurate. | |||
Eight. Safety and rest assured that a variety of protection systems do not have to worry about hidden dangers Equipped with over temperature alarm, leakage protection, under phase phase and phase lack protection, over current protection, fast fuse, line fuse and full jacket type terminal, water shortage protection, grounding protection. | |||
AC220/380V, three-phase four wire + ground protection;
In the range of voltage: AC220/380V + 10%
In the frequency range: 50Hz + 0.5 Hz
Protection, earthing resistance is less than 4 TN-S or TT power supply; power supply mode,
The protective grounding wire, used alone, not with other equipment grounding sharing.
5, the use of ambient temperature to 35 DEG C, the best use temperature: 15 to 25 DEG C, relative humidity: atmospheric pressure: 86-106Kpa = 85%RH
In ground level, good ventilation, no flammable, explosive and corrosive gases and dust
No strong airflow, around when the surrounding air need forced flow, air flow should not blow directly into the box
No, no electromagnetic field near direct sunlight and other thermal radiation source
In the peripheral equipment have adequate maintenance space
Venue: test, drainage box near the best preparing a faucet and floor drain
The 1 radiator cooling unit (condenser) should be regularly maintained, keep clean. Dust sticky condenser will make the high-pressure compressor switch jump off and produce false alarms, the condenser should be monthly maintenance, condenser cooling network on chip attachment of the dust suction or boot using hard the hair brush or with high pressure gas mouth blown clean of dust with a vacuum cleaner.
The 2 door or take the test from the furnace, not let the goods on the door to prevent the contact edge glue, glue edge damage and shorten the life.
3 around the fuselage and the bottom of the ground to keep clean and avoid large dust inhalation accidents and reduce the unit production performance.
Please notice the factory or direct handling of 4. Refrigeration system is the core of this machine, please a year inspection of all brass of any leakage of snow, the horn joint, welding mouth, such as the leakage of grease.
5. Distribution disc large current contact, power distribution room of every year at least clean maintenance more than once, the loose contact will make the equipment in hazardous work state, light burned out component, fire, alarm, personal injury is very dangerous. When cleaning cleaning using a vacuum cleaner will indoor dust suction can be among.
6. The humidifier and water disc regular cleaning, so as not to produce scale, effect of vapour emission, a general finish cleaning a test, the scale has been excluded in a timely manner favorable humidifying tube life and ensure smooth flow cleaning when using copper brush wash rinse clean.
. dry and wet ball of yarn sets of frequently check, after test cloth surface is not clean or harden, or in finishing temperature control, continue to do temperature and humidity control of the ball must be replaced yarn test set, or in more than 85 DEG C high temperature control, go on to the temperature and humidity control. The examination such as non absorbent, please replace the, related to humidity testing accuracy and testing yarn set general March a replacement, replacement application cleaning cloth wiping microthermometry, replacement of new test yarn set should first wash the tank clean
8 the examination and adjustment of the water level of the wet bulb
The water level of the water drum can not be too high, too high to cause the water to overflow the water drum or too low to cause the wet ball to test the yarn sleeve, which affects the accuracy of the wet ball. The water level is about six minutes. The adjustment of the water drum level can adjust the height of the water box [adjusting both sides of the screw]
9. The distribution box two over temperature protection device setting value, please do not just debugging, factory tuned, the protective switch is protection of heating pipe and a humidification tube air burning and water shortage alarm. Set point = temperature set point + 20 DEG to 30 DEG C, temperature test box rose to super thermostat set point, heater power supply is stopped, over heat] over temperature warning lights but the fan is running, if long time operation and supervision, running before do not have to check over temperature protection device is properly set up.
10 inspection and maintenance of waterways
Water pipe is easy to block leakage device, please be sure to check there is no leakage plugging water phenomenon, please promptly eliminate or inform us if there is. In the humidifier water storage monthly replacement to ensure clean water, the water flow is smooth.
11 condenser dust removal
The condenser should be maintained at regular intervals, using the vacuum cleaner to remove the dust from the condenser heat sink or the use of high pressure air.
12 when the test product time to get the product, must be in the shutdown state and the staff must wear a good dry, electricity, temperature resistant gloves to take place the product.
External cleaning and maintenance machine in 13 cases should be removed before operation.
The power distribution room is cleaned at least once or more every year, and can be used for cleaning the indoor dust. The exterior of the box must be cleaned more than once per year, which can be cleaned with soap and water.
14 lamp according to the circumstances of the replacement. Test box at the top of the outlet do not block the effect of heat radiation.
