Raintestbox淋雨试验箱箱、摆杆淋雨实验装置

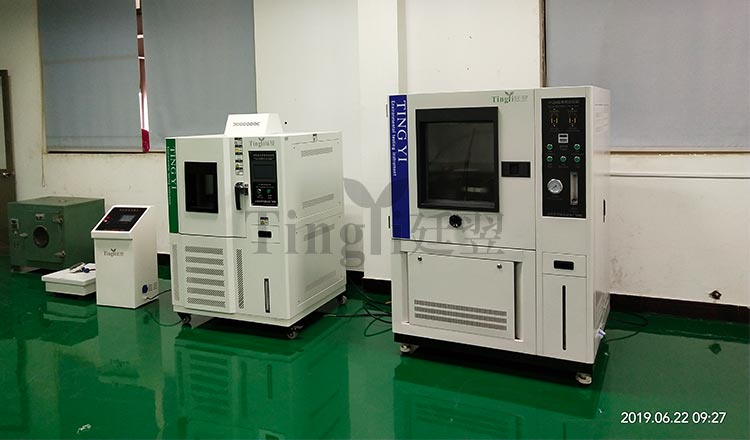

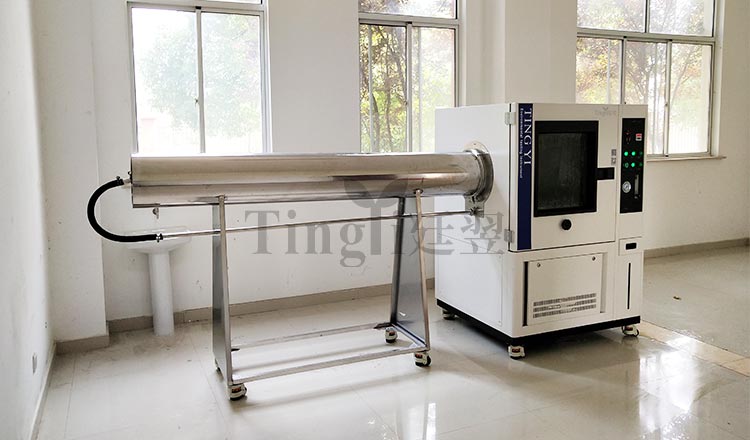

Use equipment: rain test chamber, mainly applicable to electrical and electronic, aerospace, military and other scientific research units external lighting and signal devices and auto lamp shell IPx door test detection.
Main technical parameters of the equipment specification material:
| model（L) | Studio sizeD*W*H(mm) | Carton sizeD*W*H(mm) | temperature |
| TY/LY-512L | 800*800*800 | 1100*1350*1820 | RT+10℃～80℃ |
| TY/LY-010L | 1000*1000*1000 | 1120*1430*2050 | |
| Note: the size of other materials can be customized according to requirements, the equipment is subject to material object, the experimental data were measured in 25 C no-load conditions | |||
| Construction | |||
| Internal material | High quality and advanced 304SUS/ stainless steel plate is not on the stainless steel | ||
| External material | High quality cold-rolled steel / stainless steel wire drawing, strong, beautiful, durable, durable, (color optional). | ||
| electric machinery | 370W | ||
| Water pump flow meter | Provide pressure test water / water flow measurement | ||
| Pendulum swing | Through the motor / inverter (Schneider) drive reducer / eccentric wheel mechanism / rack and pinion gear and other mechanical transmission. The use of frequency converter to adjust the number of times (unit time) by adjusting the angle of the eccentric mechanism | ||
| Rotary table | Table PVC hard class board (corrosion resistant plate) motor drives the worm gear reducer rotating, with variable speed, adjust the appropriate speed. Can reverse, time and speed adjustable | ||
| Diameter of test bed | 500mm | ||
| Test bench speed | 1~17r/minAdjustable | ||
| Shanghai Yi Ting equipment control system | |||

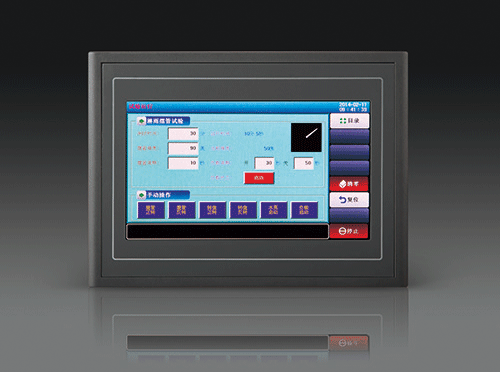

| Control instrument | 5.7寸/7Inch color touch screen display, even in computer English Export Data menu | ||
| Spray system | |||
| Diameter of water spray pipe | 16mm | ||
| Radius of water spraying ring | R375～R450 | ||
| Water jet aperture | 1.2mm | ||
| Nozzle number | 16－20 | ||
| Swing tube amplitude | 0-45、60、90～80° | ||
| Distance between water jet holes | 50mm | ||
| Water storage | 10～20KG | ||
| The rain water | 3KG | ||
| other | |||
| Power Supply | AC380V50Hz | ||
| Safety protection system | Over temperature alarm, leakage protection, overload and phase phase protection, overcurrent protection, fuse, fuse and sheath line terminals, water protection and grounding protection | ||
| Meet the standard | Shell protection grade GB5170.20-1990 rain test seal GB2423.23-1995 environmental testing for electric and electronic products | ||
(model appearance of technical information are subject to change without notice, Ting Yi has the power of final interpretation)
Yi Ting rain test box is provided with strong high price | |||
 |  | ||
 |  | ||
A large screen and high performance controller. South Korea three yuan /TEMI series Powerful functions, easy to use, interface pretty outrageous | Using the computer technology, the advanced PID control method to measure and control the temperature and humidity of the environment, and can be used with constant temperature and humidity equipment. Alternating high and low temperature test box, suitable for more suitable test box with constant temperature and humidity, dust and rain xenon lamp UV ozone salt fog test box. Can display and control interface is clear and intuitive touch, select menu, easy to use, stable and reliable performance. This program control is flexible, cost-effective. | ||
1 5.7 inch /7 inch color touch screen 2 two control modes (setting / program) 3 types of sensor: PT100 sensor (optional electronic sensor) 4 output type: voltage pulse (SSR) / (4-20mA) analog output control output: 2 Road (temperature / humidity); 5 can bring the printer (USB features optional); 6 communication interface: (RS232/RS485, the longest communication distance 1.2km[optical fiber up to 30km]), can connect the printer to print temperature and humidity curve monitoring data; 7 program editor: programmable 120 sets of programs, each program for the 100 largest; 8 interface language: Chinese / English, optional | |||
 |  |  | |
Two. / Schneider / CHINT and other well-known Delixi electrical components Stable performance and long durability problems incomparable, prevent circuit | |||
Three, safe and secure, a variety of protection systems do not have to worry about hidden dangers Equipped with over temperature alarm, leakage protection, under phase phase and phase lack protection, over current protection, fast fuse, line fuse and full jacket type terminal, water shortage protection, grounding protection. | |||
AC220/380V, three-phase four wire + ground protection; In the voltage range: + 10% In the frequency range: 50Hz + 0.5 Hz Protection, earthing resistance is less than 4 TN-S or TT power supply; power supply mode, The protective grounding wire, used alone, not with other equipment grounding sharing. |
○ The use of ambient temperature 5 to 35 DEG C, the best use temperature: 15 to 25 DEG C, relative humidity: atmospheric pressure: 86-106Kpa = 85%RH |
In ground level, good ventilation, no flammable, explosive and corrosive gases and dust No strong airflow, around when the surrounding air need forced flow, air flow should not blow directly into the box No, no electromagnetic field near direct sunlight and other thermal radiation source In the peripheral equipment have adequate maintenance space Ground, bearing requirements more than 600kg/ square meters (the upstairs venue) Venue: test, drainage box near the best preparing a faucet and floor drain |
Maintenance considerations and methods:
Operating specifications
First connect the power supply, then turn on the power switch, the power light is bright, then the controller will automatically enter the fixed value stop interface;
1, when the power supply is turned on, the machine will stop running when the control program is running;
2, when the control program is set to run, the machine will stop running;
3, open the box door handle, the test sample on the sample rack; and then close the door;
Note: the capacity of the specimen should not exceed the capacity of the test area 2/3;
4, according to the "manual", the first test set operation, and then according to the set of operation mode to enter the test state;
5, in the test to observe the condition changes inside the box, to open the door switch, through the window aware of changes can be opened; in the controller will test box changes in temperature and humidity (if the test no humidity, humidity value display no display value);
6, open the box door handle, the test samples taken from the sample rack, check the test samples, and to record the test condition; the test is completed;
7, after the test is completed, turn off the power switch.
matters needing attention
1, in the operation to hear the sound of the accident, the need to stop the inspection, to be detected after the fault can be re boot, so as not to affect the service life of equipment.
2, the transmission must be regular refueling, reducer must be cleaned 20# oil.
3, after positioning the device, the supporting frame is propped up, to prevent the equipment test by the vibration displacement after caster.
4, rain test chamber running for a long time, such as the discovery of blowhole jam, the pipe must be removed, washed with tap water after assembly up.
